Bavaria 40 Vision

The yachts of BAVARIA's new VISION line offer an increased standard equipment compared with the current cruiser line and a new dimension in speed potential by using new hull designs, a ballast ratio of above 35%, and significantly increased sail areas.

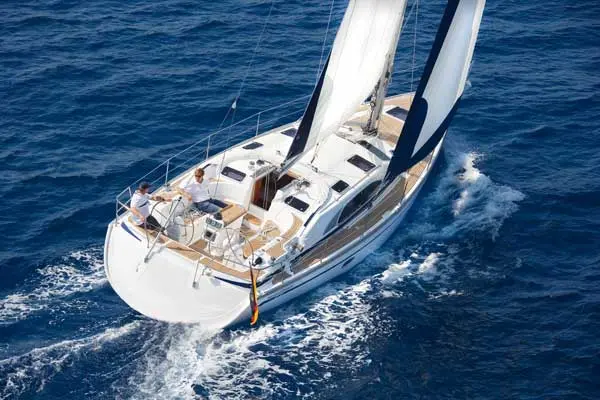

The new Bavaria 40 vision

Exterior

Hull

• Hull color white
• 6 hull windows (fixed)

Rudder/Keel

• Lead keel - shallow draft
• Symmetrical rudder with fore balance
• Emergency tiller

Steering pedestral

• Double steering pedestal
• 2 steering wheels with leather cover

Deck

• Deck ventilator
• Side deck and coach roof with anti slip structure
• 4 aluminum cleats
• Coaming for sprayhood
• Pulpit, pushpit
• Guardrail
• Bow fitting with anchor roller

Bathing platform

• Bathing platform electrical lowerable with teak
• Bathing ladder stainless steel (telescope)
• Cockpit-shower (cold)

Cockpit

• Teak on cockpit floor and cockpit seats
• Cockpit table
• Box for gas bottles, self drained

Standing/running rigging

• Mainsail, coordinated for conventional rig
• Genoa, coordinated for standard fore sail reefing gear
• Conventional Sport rig

Winches

• 2 winch handles
• 2 halyard winches, self-tailing
• 2 genoa winches, self-tailing

Interior

Cabins

• 2 cabins with 4 fixed berths and salon (only 40)
• Cabinet in foreship and aft cabin

Bathroom

• Pump-toilet with holding tank, disposal via seacock and deck suction

Salon

• Salon table, fixed
• Salon with settee
• Upholstery Vision Blue / Vision Beige
• Sideboards, shelves and cabinets
• Storage lockers

Navigation area

• Chart table with console for instruments
• Chart table seat

Pantry

• 2-flame gas cooker with oven
• Icebox with compressor
• Refrigerator 80 l
• Stainless steel sink
• 4 fire extinguisher
• Fire extinguisher blanket

Miscellaneous

Water supply

• Fresh water tank with level indicator 210 l
• Electrical pressurized water pump with filter

Bilge pump

• Manual bilge pump
• Electrical bilge pump

Engine

• Two circuit cooling with seawater filter
• Engine hour meter and rev meter
• Voltmeter, Fuel indicator

Electrical system

• Engine circuit 88 Ah, on board electrical system 135 Ah
• Main power supply with circuit breaker and control lamps
• AC-outlet package (1 per cabin and 2 in galley)
• Shore supply 230 V ( 1x 230 V AC-outlet on switch board) (shore supply 110 V for surcharge)
• 12 V-outlet at switch board

Navigation

• Windex
• Navigation lamps, deck light

Exterior

Rudder/Keel

• Lead keel, as deep draft
• Bow thruster SE 80, electric (only in combination with 2nd service battery)

Anchor

• Electrical windlass
• Plough anchor, zinc-coated
• Anchor chain, zinc-coated, Ø 8 mm, 50 meters
• Anchor chain, stainless steel, Ø 8 mm, 50 meters
• Anchor chain, zinc-coated, Ø 10 mm, 50 meters
• Anchor chain, stainless steel, Ø 10 mm, 50 meters

Deck

• Sun upholstery for deck
• Teak on side deck and coach roof
• Guardrail opening on both sides
• 2 spring cleats, aluminium, midships
• 4 stainless steel cleats
• 2 spring cleats, stainless steel, only in combination with 4 stainless steel cleats
• Life-saving collar with holding device and life line, installed at pushpit
• LFS-safety package, life-safety system

Bathing platform

• Cockpit-shower warm (only in combination with warm water boiler 20 l)

Cockpit

• Sprayhood
• Bimini (deck rigging)
• Bimini, large (rigging on pushpit)
• Camper cover
• Upholstery on seat thwarts in cockpit

Standing/running rigging

• Fully battened mainsail with MDS-system and lazyjacks, reefing genoa
• High-tech sailset for mainsail-furling system; furling main, EMS-System, sandwich laminate, reefing genoa with e-foam, tri-radial, cut and surface optimized.
• High-tech sailset for battened main and genoa, cut and surface optimized, sandwich/laminate cloth; battened main incl. MDS & lazyjacks, bi-radial; reefing genoa with e-foam, tri-radial.
• Backstay adjuster with handel
• Spinnaker gear complete with spinnaker boom and holding device; Downhaul with separate chain plate, excenter cleats for halyard and topping lift, topper for downhauls, leading blocks at mast and rail stanchions, leading blocks, spi-lift system.
• Rodkick with gas pressurized spring
• Gennaker boom
• Mainsail furling system

Winches

• Spi-winches, 2-gear, self-tailing
• 1 genoa reefing winch, 2-gear, self tailing
• 2 x Electric genoa winches
• 2 x Larger genoa winches
• 2 x Larger halyard winches

Interior

Head

• Shower in aft head with shower room separation

Pantry

• 3-flame gas cooker with oven

Miscellaneous

• Steel cradle for oversea transport
• Life raft (in bag)
• First aid kit "Coastal"
• Hot air heating, 3,5 KW, fuelling via engine fuel tank

Water supply

• Additional water tank in foreship 150 l
• Warm water boiler 20 l via engine-cooling circuit and via 230 V shore supply

Engine (additional charge to basic engine)

• Volvo-Penta D2-55, 39 kW / 53 hp, with Saildrive
• Folding propeller, 3-blade

Electrical system

• 2nd additional battery 135 Ah
• Shore supply 110 V (1 x 110 V AC-outlet on switch board)
• Battery charger, 45 A (3-channel)

Multimedia

• TV 19" in Salon with DVD
• TV-cabling, incl. antenna with outlets
• Radio with CD-/MP3-Player with 2 speakers in salon

Navigation

• VHF-cabling, incl. antenna, installed in mast to chart table
• Raymarine Tridata ST 60 Plus (log, echo sounder and temp), per unit
• Autopilot, Raymarine ST 6002
• Electr. wind gauge, Raymarine
• Chart plotter, Raymarine C 80 with GPS (cockpittable)
• Chart plotter, Raymarine E 80 with GPS, for chart table, only

Performance

• Larger genoa winches
• Larger halyard winches
• Rodkick with gas pressurized spring
• High-tech sailset for battened main and genoa,  sandwich/laminate cloth; battened main incl. MDS & lazyjacks, bi-radial; reefing genoa tri-radial
• Backstay adjuster, tackle
• Spinnaker gear complete with spinnaker boom and holding device; Downhaul with separate chain plate, excenter cleats for halyard and topping lift, stopper for downhauls, leading blocks at mast and rail stanchions, leading blocks, spi-lift system
• Gennaker boom
• Raymarine Tridata ST 60 Plus (log, echo sounder and temp)
• Folding propeller, 3-blade

Family

• 2 spring cleats, aluminium, midships
• Sprayhood
• Bimini (deck rigging)
• Rodkick with gas pressurized spring
• Mainsail-furling system
• Battery charger, 45 A (3-channel)
• 2nd additional battery, 135 Ah
• Warm water boiler 20l via engine-cooling circuit and via 230V shore supply
• Raymarine Tridata ST 60 Plus (log, echo sounder and temp)

Family - north (Equipment analog to Family)

• without sprayhood and bimini

Holiday

• 2 spring cleats, aluminium, midships
• Sprayhood
• Bimini (deck rigging)
• Rodkick with gas pressurized spring
• Battery charger, 45 A
• VHF-cabling, incl. antenna, installed in mast to chart table
• Shower in aft head with shower room separation
• Warm water boiler 20l via engine-cooling circuit and via 230V shore supply
• Raymarine Tridata ST 60 Plus (log, echo sounder and temp)
• Auto pilot, Raymarine ST 6002
• Electr. wind gauge, Raymarine

Comfort

• Teak on side deck and coach roof
• Rail opening on both sides
• 4 stainless steel cleats
• 2 stainless spring cleats
• Sprayhood
• Bimini (deck rigging)
• Rodkick with gas pressurized spring
• Mainsail-furling system
• Battery charger, 45 A (3-channel)
• 2nd additional battery, 135 Ah
• Warm water boiler 20 l via engine-cooling circuit and via 230 V shore supply
• Raymarine Tridata ST 60 Plus (log, echo sounder and temp)
• Electr. wind gauge, Raymarine

Function package (bundle)

Ancoring

• Electrical anchor winch
• Plough anchor, zinc-coated
• Anchor chain, zinc-coated, Ø 8 mm, 50 meters

Multimedia

• TV 19" in salon with DVD
• TV cabling incl. antenna and AC-outlets
• Radio with CD-/MP3-Player with 2 speakers in salon

Safety

• Life-saving collar with holding device and life line, installed at pushpit
• LFS-safety package, life-safety system
• Life raft (in bag)
• First aid kit coastal

Navigation I

• VHF-cabling, incl. antenna, installed in mast to chart table
• Raymarine Tridata ST 60 Plus (log, echo sounder and temp)
• Auto pilot, Raymarine ST 6002
• Electr. wind gauge, Raymarine

Navigation II

• VHF-cabling, incl. antenna, installed in mast to chart table
• Raymarine Tridata ST 60 Plus (log, echo sounder and temp)
• Auto pilot, Raymarine ST 6002
• Electr. wind gauge, Raymarine
• Chart plotter, Raymarine C 80 with GPS (chart table)
